Self Dumping Hoppers And Dumping Waste Bins Vancouver BC
- Made In British Columbia, Canada
- Standard Sizes In Stock For Fast Delivery
- Can Be Picked Up And Dumped By Using Virtually Any Forklift Make Or Model
Steel Self Dumping Hoppers ( Roll - Forward Style )
Steel Self Dumping Hoppers ( Front Door Style )
Polyethylene Plastic Self Dumping Hoppers

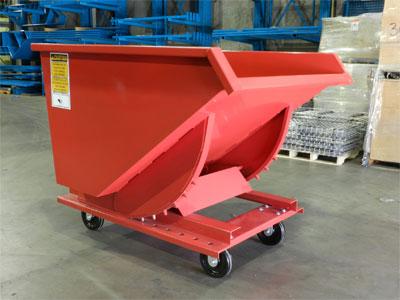

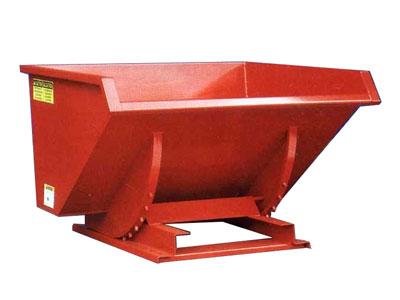

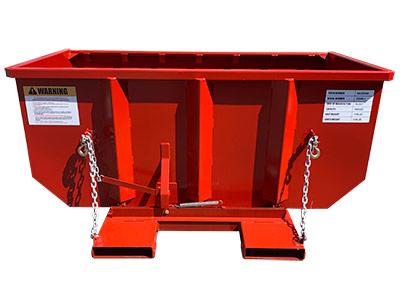

Self Dumping Hoppers ( Roll - Forward Style )

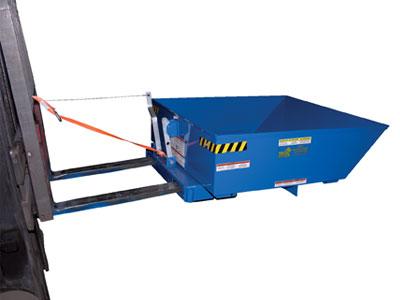

These steel roll-forward style self dumping hoppers are balanced in such a way that they will automatically roll forward when the release mechanism is activated. They are designed to fully dump all of their contents and then return to the upright and locked position ready to accept their next load.
There is a reinforced steel locking latch that has a spring loaded safety catch.
Built heavy duty with (3) grades of construction ( 10 gauge / 3/16” and ¼” sidewall thickness ), open fork pockets and optional 8” diameter casters or optional steel lids, these hoppers are built to last for virtually every type of industrial or commercial application.
Replacement parts are readily available locally in BC.
The Most Popular Roll - Forward Style Self Dumping Hopper Options
- Hopper Lids
- Hopper Casters ( 6” and 8" Diameter )
- Heavier Gauge Steel Thickness ( i.e. 3/16" & 1/4" Construction ) For Extreme Applications
- Custom Sizes
The Most Popular Roll - Forward Style Self Dumping Hopper Sizes
| Capacity ( cu. yds) | Outside Dimensions L" x W" x H" | Construction Quality | Empty Service Weight ( lbs ) | Payload Capacity ( lbs ) | Gross Weight ( lbs ) |
|---|---|---|---|---|---|
| 1/2 | 46" x 41" x 32" | 10 gauge | 385 | 4000 | 4385 |
| 1/2 | 46" x 41" x 32" | 3/16" | 460 | 4000 | 4460 |
| 1/2 | 46" x 41" x 32" | 1/4" | 535 | 4000 | 4535 |
| 3/4 | 55" x 41" x 36" | 10 gauge | 420 | 4000 | 4420 |
| 3/4 | 55" x 41" x 36" | 3/16" | 500 | 4000 | 4500 |
| 3/4 | 55" x 41" x 36" | 1/4" | 585 | 4000 | 4585 |
| 1 | 63" x 41" x 43" | 10 gauge | 505 | 4000 | 4505 |
| 1 | 63" x 41" x 43" | 3/16" | 615 | 4000 | 4615 |
| 1 | 63" x 41" x 43" | 1/4" | 720 | 4000 | 4720 |
| 1 1/2 | 63" x 53" x 43" | 10 gauge | 560 | 4000 | 4560 |
| 1 1/2 | 63" x 53" x 43" | 3/16" | 680 | 4000 | 4680 |
| 1 1/2 | 63" x 53" x 43" | 1/4" | 815 | 4000 | 4815 |
| 2 | 63" x 65" x 43" | 10 gauge | 610 | 4000 | 4610 |
| 2 | 63" x 65" x 43" | 3/16" | 750 | 4000 | 4750 |
| 2 | 63" x 65" x 43" | 1/4" | 905 | 4000 | 4905 |
| 3 | 77" x 65" x 51" | 10 gauge | 850 | 4000 | 4850 |
| 3 | 77" x 65" x 51" | 3/16" | 1035 | 4000 | 5035 |
| 3 | 77" x 65" x 51" | 1/4" | 1240 | 4000 | 5240 |
| 4 | 77" x 65" x 63" | 10 gauge | 970 | 4000 | 4970 |
| 4 | 77" x 65" x 63" | 3/16" | 1180 | 4000 | 5180 |
| 4 | 77" x 65" x 63" | 1/4" | 1425 | 4000 | 5425 |

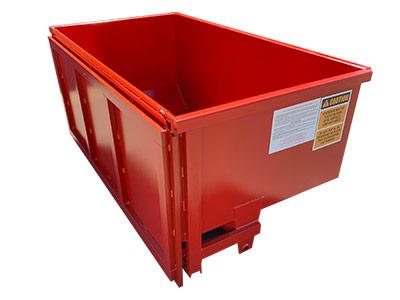

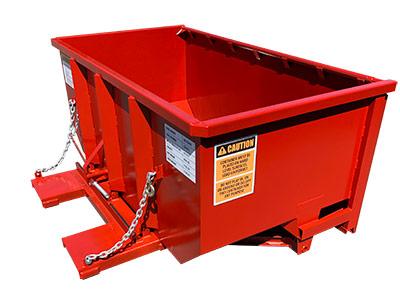

Dumping Waste Bins / Dumping Garbage Bins ( Front Door Style )
These steel front door style dumping waste bins / dumping garbage bins have a hinged door panel at the front of the hopper that can be opened by activating a release mechanism whereby the door opens at the bottom and the whole front panel pivots from the top of the bin structure. They are designed to fully dump all of their contents after the release mechanism is activated and after the forklift mast is tilted as far forward as possible. After dumping, the pivoting door can re-latch into place by activating the mast tilt in the opposite direction.
There is a reinforced steel locking latch that has a spring loaded safety catch.
Built heavy duty they come in 3 different sizes; 2, 4 or 6 cubic yard capacity.
You can request a particular fixed fork pocket size.
These hoppers are built to last for virtually every type of industrial or commercial application.
Replacement parts are readily available locally in BC.
This style of dumping hopper is commonly used in the lumber industry, specifically in the remanufacturing sector.
The Most Popular Front Door Style Dumping Waste Bin / Garbage Bin Sizes
- 2 Cubic Yard Capacity
- 4 Cubic Yard Capacity
- 6 Cubic Yard Capacity

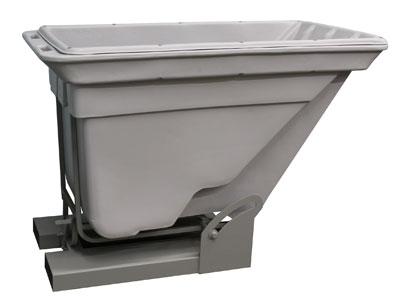

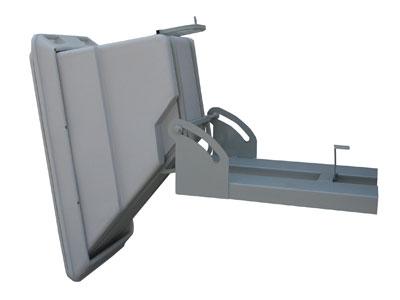

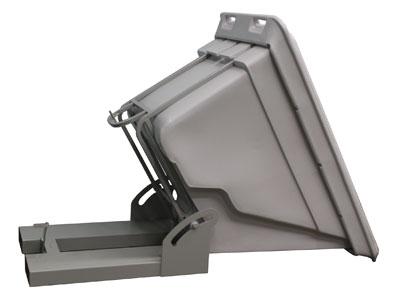

The Most Popular Polyethylene Plastic Self Dumping Hopper Sizes
- 5/8 Cubic Yard ( 41” High by 28” Wide by 57” Long )
- 1.1 Cubic Yard ( 45” High by 35” Wide by 67” Long )
For more information or to request a quote on a self dumping hopper, please contact Scott McLeod, President of Fleetman Consulting Inc. by calling (604)614-3530 or by email via help@fleetmanconsulting.com.
